EcoSmart Fire wall-mounted fireplaces are engineered for integration into most wall constructions, though the backing material and clearances matter. Suitable substrates include brick, stone, plastered masonry, fire-rated plasterboard, tile, and concrete. Stud walls work when lined with fire-rated plasterboard and hollow-wall anchors; fabric and wallpaper directly behind the unit must be avoided.

Recessed installations require non-combustible cavity backing, such as vermiculite board, fibre cement, or steel framing lined with fire board, to maintain safe operating temperatures. The Flex Series is purpose-built for architect-led recessed integration and uses specified mounting brackets and spacers to create the necessary air gap for heat distribution.

Installation details vary by model, so the manufacturer's installation manual governs clearances to combustibles and any structural considerations.

Yes, you can install a TV above a wall-mounted ethanol fireplace using one of three engineered design solutions. EcoSmart Fire bioethanol fireplaces emit minimal radiant heat and require no venting, making TV placement above the opening viable when proper spacing or shielding is applied.

The three approved approaches are: (1) a non-combustible mantel or ledge installed between the fireplace and TV to deflect radiant heat; (2) a recessed niche that sets the TV into the wall above the fireplace, creating physical depth separation from the flame; (3) sufficient setback clearance, positioning the TV well above the opening to allow heat to dissipate naturally.

Overhead clearance from the flame to any overhead surface must be 1,500–2,000 mm [59–78 in], depending on your burner model. Check your installation manual for the exact specification. The fireplace itself has zero clearance at the back and sides, but materials positioned above it, including your TV bracket, are not supported by the fireplace frame. Your TV bracket must be independently anchored to the wall structure or a structural element, not the fireplace surround. This independent anchoring ensures safe mounting and code compliance for load-bearing fixtures.

EcoSmart Fire bioethanol fireplace inserts cost significantly less to install than traditional gas or wood-burning fireplaces because they eliminate structural modifications, gas line installation, and chimney work. Installation focuses on securing the insert in a framework and finishing the surround, a zero-clearance design that removes expensive building work.

The cost advantage comes from simplicity: no venting requirement, no electrical wiring, no combustion air ducts. Installation typically completes in under an hour once the framework is ready, keeping labour costs lower and timelines shorter. Many homeowners invest in professional finishing work, but the fireplace insert itself requires minimal specialist input.

EcoSmart Fire reports up to 70% in cost savings compared to gas fireplaces across the full installation journey. This includes the insert and surrounding build work. The remaining costs reflect design choices: cabinetry finishes, materials, and architectural integration, decisions that would apply regardless of fireplace type.

Once installed, running costs are minimal. A 9-litre fuel refill burns for 8–13 hours depending on heat setting, making it one of the most economical focal point options. Total cost of ownership, including installation and fuel, typically proves competitive with traditional alternatives.

Minimum room volume is determined by the burner capacity, not the fireplace footprint. EcoSmart Fire wall-mounted bioethanol fireplaces require between 40 m³ [1,413 ft³] and 90 m³ [3,178 ft³] depending on the model's heat output; compact models start at 40 m³, whilst larger designer series reach 90 m³. A few models in the largest range require up to 116 m³ [4,096 ft³].

These figures represent the air capacity needed to sustain clean combustion. EcoSmart Fire bioethanol fireplaces are engineered to operate safely in rooms of these volumes, meeting strict safety certifications. Natural air infiltration through doors, windows, and standard building construction provides adequate fresh-air exchange in rooms meeting the minimum volume.

The right fireplace scale often matches your room size naturally. A 40 m³ space (roughly 4 × 5 × 2 metres) suits compact models perfectly; a 90 m³ space (say, 6 × 5 × 3 metres) accommodates larger designer fireplaces. Rather than viewing this as a constraint, consider it a guide to matching the visual and thermal impact of the fireplace to the space itself.

Check your product's specifications for the exact minimum; the burner type determines the requirement, not the installation style.

Ideal mounting height for EcoSmart Fire wall-mounted bioethanol fireplaces depends on how you want to experience the flame rather than a single fixed measurement. Position the burner at eye level when seated in your primary viewing area, typically 1,200–1,400 mm [47–55 in] from the finished floor, so the flame draws your gaze naturally as you relax.

Viewing angle is the real guide. If you'll stand in front of it, aim higher. If you're watching from a dining table, position lower. The beauty of bioethanol fireplaces is that ventless installation frees you from chimney positioning, ceiling-height constraints, or ventilation paths. Design comfort first, then build clearance into the architecture around it.

Maintain overhead clearance of 1,500 mm [59.1 in] from the flame to any combustible material (ceilings, shelving, curtains). Non-combustible mantels can sit as close as 600 mm [23.6 in]. These aren't rigid rules but sensible margins that protect finishes and ensure safe operation.

Your placement becomes a design choice driven by sightline and room proportion, not a compliance checklist.

A zero-clearance ethanol fireplace insert is a self-contained bioethanol fire unit designed to drop into a wall cavity or an existing hearth, delivering a real flame without a chimney, flue, gas line or electrical connection. It burns liquid bioethanol fuel cleanly, producing only heat, water vapour and a small amount of CO2, with no smoke, soot, sparks or ash. That clean combustion is what sets it apart from a wood or gas insert, and what allows the unit to sit directly against timber or metal studs.

EcoSmart Fire builds ethanol inserts across three ranges, each suited to a different architectural setting:

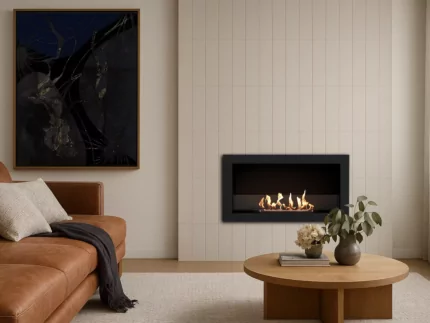

• Frame: recessed wall inserts for indoor or outdoor single-sided viewing, built around a Grade 304 stainless steel burner and toughened glass screen.

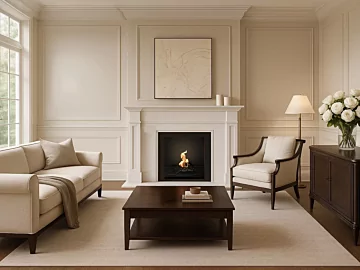

• Heritage: a contemporary take on the traditional hearth and firebox, designed for classic fireplace openings.
• Grate: drop-in bioethanol grates that convert an existing wood-burning fireplace into a clean-burning fire, suitable for retrofit projects.

All ranges are safety-certified and designed for use in adequately ventilated indoor and outdoor spaces.

Recessed installation of EcoSmart Fire bioethanol fireplaces follows a straightforward three-phase process.

Construct your wall cavity to the specified cut-out dimensions, slide the appliance into the opening so the base sits securely on 50 × 100 mm [2×4 in] framing, then secure it via the mounting hole flanges using a power drill and screwdriver. Remove the transport brackets, complete your wall panelling around the insert, and the fireplace is ready for operation: no venting, no gas line, no electrician required.

The absence of utility connections is what makes recessed installation possible in spaces where traditional fireplaces cannot go: interior feature walls, under-window niches, between built-in cabinetry.

Framing above the appliance must be self-supporting, and the toughened glass windscreen slides into place before the decorative charcoal spreads around the appliance tray. Most installations are completed within an hour.

EcoSmart Fire trade specialists are available to review your design drawings at no cost and provide technical support throughout installation. Compliance with UL 1370 and EN 16647 standards ensures your installation meets all relevant safety requirements.

Minimum footprints by range:

• Frame (surface-mounted, zero clearance): 746 mm x 798 mm, 403 mm deep
• Flex (recessed cavity): 488 mm wide x 730 mm tall, 365 mm deep
• Heritage (hearth alcove): 860 mm wide x 910 mm tall, 539 mm deep

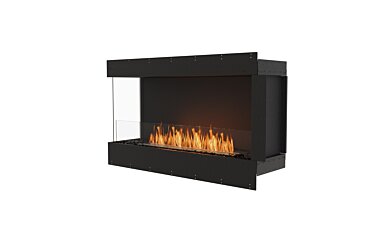

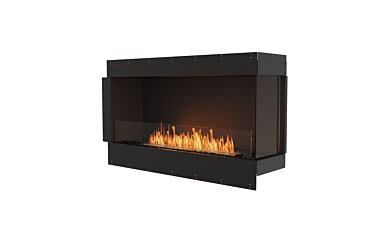

Yes, EcoSmart Fire bioethanol fireplaces can be recessed into walls. The Flex range is specifically engineered for recessed installation, with the appliance mounted inside a wall cavity and finished flush with the surrounding surface, eliminating any protrusion.

A recessed Flex fireplace requires a framed cavity with specific dimensions: 365 mm [14.4 in] deep, 730 mm [28.7 in] high, and width from 488 mm [19.2 in] up to 4,140 mm [163 in] depending on the model chosen. The appliance slides into the cavity and anchors to the wall framing via mounting flanges. Crucially, any framing above the installation must be self-supporting; the fireplace itself carries no load from the structure.

The zero-clearance design means the unit installs directly against framing with no additional clearance requirements. Recessing integrates seamlessly with marble, timber, concrete, and bespoke millwork finishes, maximising the room footprint while creating a sculptural architectural focal point.

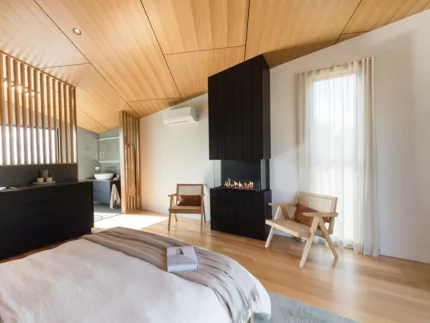

Recessed into an interior wall, a Flex bioethanol fireplace delivers a clean, indoor-optimised flame — no flue, no gas line, and no chimney required. The bioethanol fuel burns cleanly, producing no soot or smoke, making it well suited to sealed indoor environments where air quality and interior finish integrity matter. From living rooms and bedrooms to hospitality spaces, the flush, frameless installation creates a living indoor flame feature that is as architecturally refined as it is practically suited to indoor living.

EcoSmart Fire's zero-clearance bioethanol fireplace inserts do not require professional installation. They are designed for confident DIY completion with comprehensive instructions.

The process has three steps: construct a timber-framed cavity to specified dimensions, mount the insert via the included mounting holes, and finish the surround with approved non-combustible materials. No structural modifications or specialist trades are needed.

Many customers choose to involve a qualified builder or interior designer, and this is where professional input earns its value. A tradesperson brings precise placement, tight integration with bespoke cabinetry, and a polished finish that elevates the overall design. If you're building or renovating, they can also coordinate installation timing across other trades on site.

EcoSmart Fire's trade specialists offer a free drawing review to validate your plan before work begins, giving you expert oversight without the cost of full professional installation.

Building permit requirements vary by jurisdiction; confirm local regulations before starting work.
